Ultrasonic Extraction Ethanol Extraction Machine is applied to the alcohol precipitation and extraction of traditional Chinese medicine, oral liquid, food, etc.

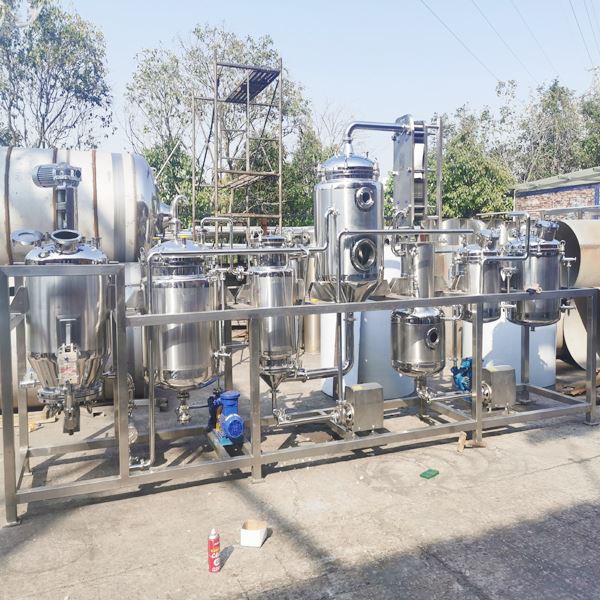

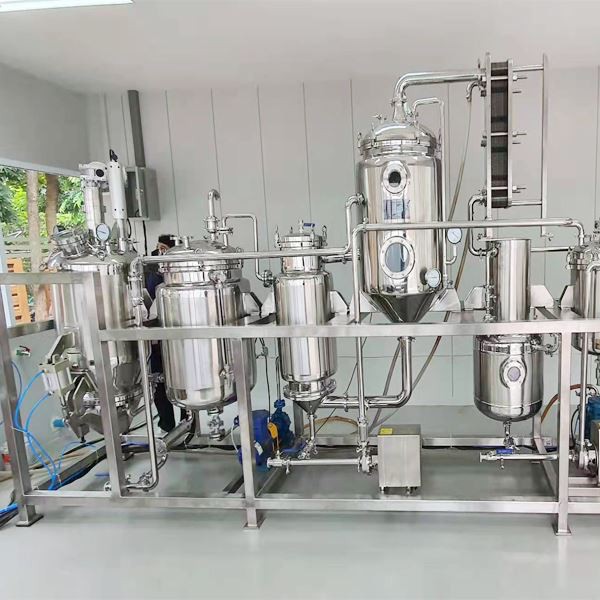

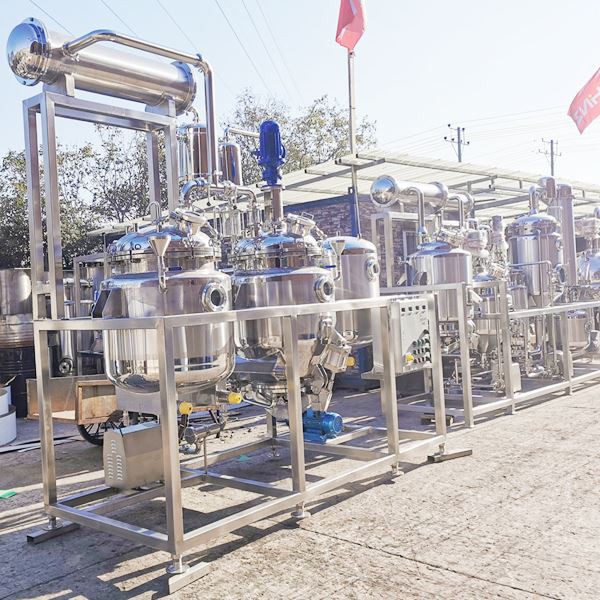

Ultrasonic Extraction Ethanol Extraction Machine
Ultrasonic extraction and concentration unit is a subject designed by ultrasonic extraction and separation mainly based on the existence, polarity and solubility of active ingredients and active ingredient groups in substances. The new technology of extracting by the method of ultrasonic vibration reasonably makes the solvent enter the solid material quickly, and the organic components contained in the material are dissolved in the solvent as completely as possible to obtain a multi-component mixed extract. The use of ultrasonic technology to strengthen the extraction and separation process can effectively improve the extraction and separation rate, shorten the extraction time, save costs, and even improve the quality and yield of products.
Working principle of extracting:
1. Water extraction: Water and Chinese medicine are added to the inner tank in a certain proportion, and the jacket steam shut-off valve is opened to start heating and water extraction. The large amount of steam generated is condensed and then separated, and the condensate is returned to the extraction tank until the extraction is terminated. When the extraction solution reaches the extraction process requirements, stop heating.
2. Alcohol extraction: drugs and alcohol are first put into the inner tank in a certain proportion, which must work under sealed conditions, and open the jacket to start evaporation into the valve for steam heating extraction.
3. Oil extraction: first put the Chinese medicine containing volatile oil into the extractor, open the oil separator circulation valve, close the bypass return valve and open the jacket steam valve. When the evaporation temperature is reached, turn on the cooling water for cooling, and the coolant should be kept at a certain separation level in the separator.
4. Forced circulation: In the extraction process, in order to improve the extraction efficiency, the liquid can be pumped to make the liquid from the bottom of the tank through the double filter to discharge the liquid tube, and then use the liquid pump to return to the tank for extraction.
Equipment characteristics：
Ultrasonic Extraction Ethanol Extraction Machine is suitable for a variety of process operations such as water decoction, hot reflux, forced circulation, filtration, etc. Its outstanding features are very convenient slagging and good heating effect. The tank is equipped with CIP cleaning automatic rotating spray ball head, temperature measuring hole, explosion-proof lighting, etc. It is easy to operate and conforms to GMP standards. The tank body inside the equipment is made of imported SUS304, and the sheath is made of fully sealed aluminum silicate insulation blanket. SUS304 semi-glossy thin steel plate is pasted on the outside of the tank for surface decoration.
About Us
The company insists on independent innovation of key core technologies to provide more users with high-quality, reliable, patented and safe products. We have established a global team to pursue our global strategy and continue to strengthen the collaboration between our global business teams and the regions in terms of strategy and execution. We implement our responsibilities with meticulous requirements, touch customers with subtle service, strive for perfection with meticulous work, pay attention to details and constantly improve.
1. Q : How can customer know the processes of order?
A : We will take photo or video during manufacturing every two weeks to make customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself.
2. Q : Do you supply installation equipment in oversea?
A : Yes, if need, we can also send our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 200USD/day.
3. Q : How to control quality?
A : All material we use has material certification. Before any piece of equipment leaves CHINZ. It goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.
4. Q : What is the shipment schedule?
A : We will send you photographs of your order being loaded into the shipping container at the factory. The shipping container will generally leave port 3-4 days after loading. We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container. Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time. Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company. You will be directly contacted by the shipping company’s local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time. If you need to delay the final delivery, there will be a “pull” fee of approximately $100, and a storage fee of approximately $150 per shipping container per day.
