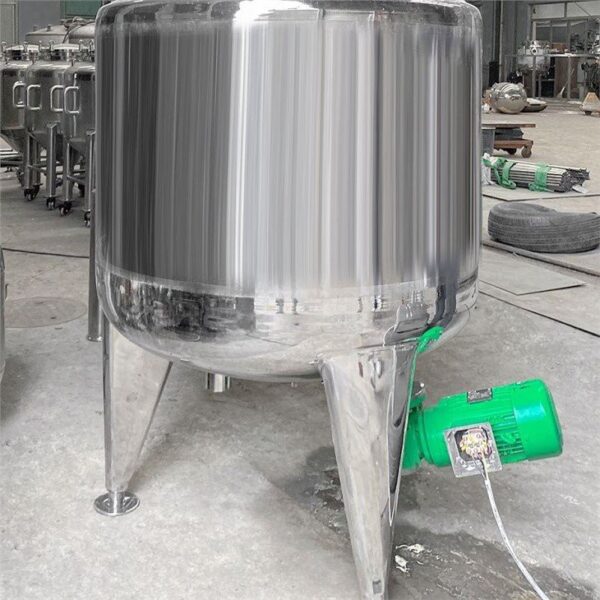

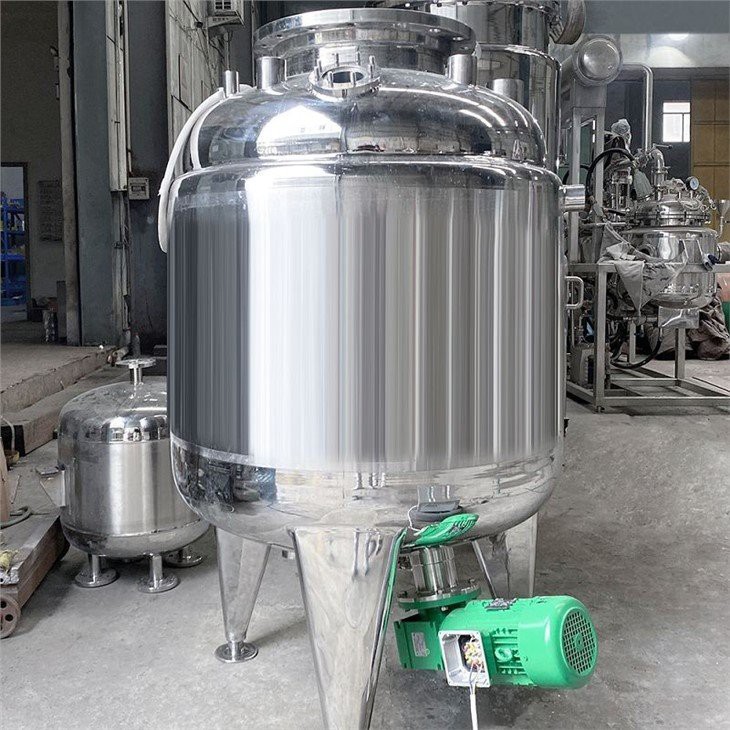

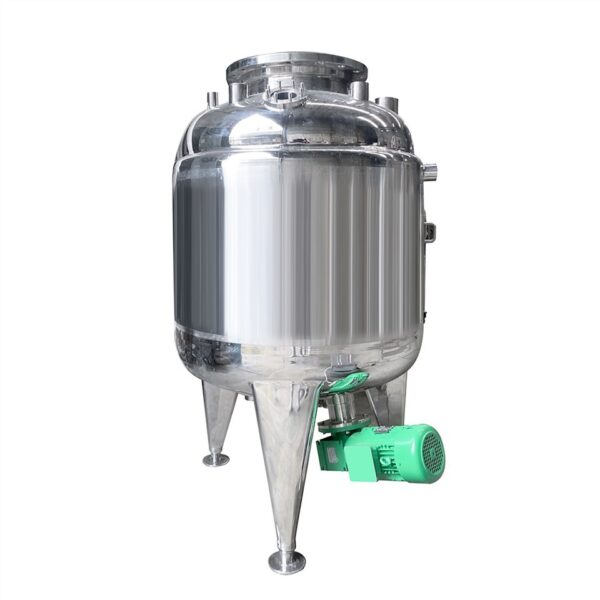

Magnetic mixing tank has characteristics of no leakage, fully sealed, corrosion resistance and energysaving. Because of its non-contact transmission torque, taking static seal to replace dynamic seal, it solves the leakage problem that other shaft seals cannot overcome. Since all materials and the stirring components operate in a sterile and sanitary state, the magnetic stirring tank is an ideal replacement for processing machines in the industries of pharmaceutical, fine chemicals, cosmetics and bioengineering.It is a sterile liquid mixing tank with stirring device installed at the bottom or sideways if necessary, enabling CIP and SIP.

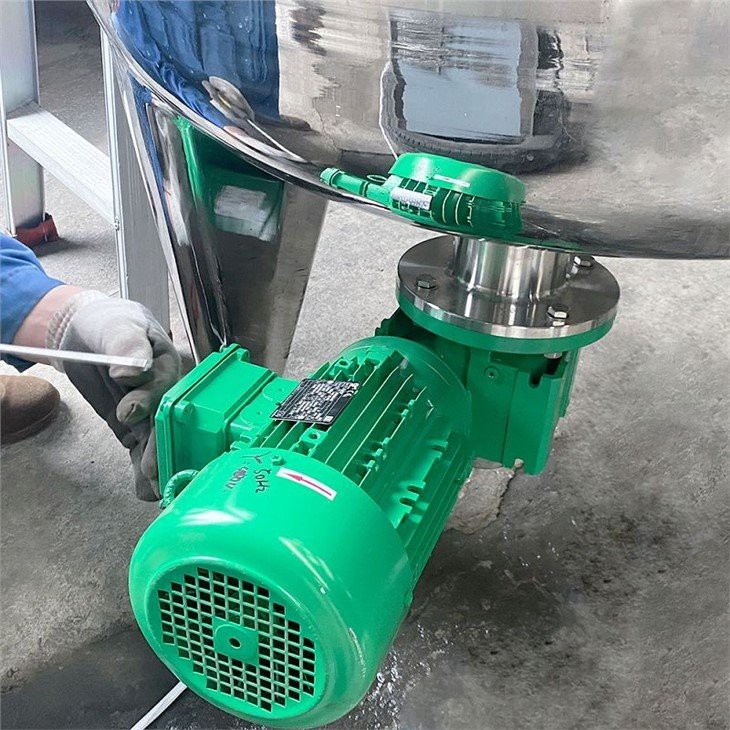

Magnetic Stirring Tank is often used in the pharmaceutical industry, bioengineering industry, food industry, and other fields with high hygiene requirements. Its core mixing device is composed of internal magnetic steel, external magnetic steel, an isolation sleeve, a drive motor, and other components, and it works by driving the mixing shaft through the working principle of permanent magnetic coupling. It is different from the ordinary mixing tank in that it gives up the packing seal or mechanical seal, but uses the static seal. Therefore, the mixing parts in the tank completely rotate inside the static seal chamber of the tank body and do not protrude outside the tank body, completely solving the problem of leakage that cannot be overcome by the dynamic seal.
Features
Magnetic Stirring Tank adopts non-contact transmission torque and a new sealing method, so it can well overcome the leakage problem.
The mixed materials are completely in a closed state, so no leakage or pollution will occur.
Its overall structure is simple and a standardized design is adopted, so it is more convenient to clean, maintain and replace components.

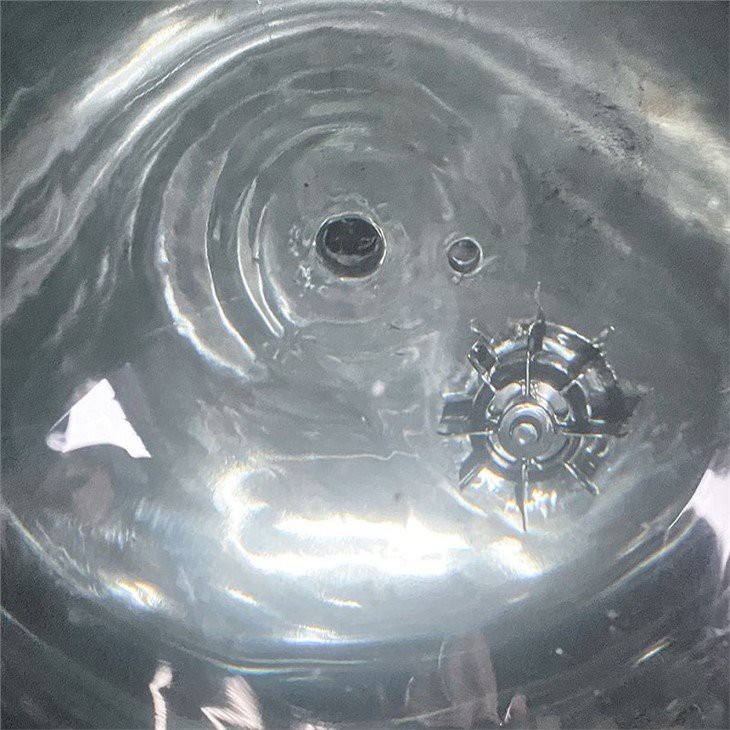

The agitator is installed at the bottom, so the mixing can be completed even if there is less material.
The parts of the Magnetic Stirring Tank in contact with materials are all made of stainless steel, which can guarantee hygiene and durability.
| Model | Volume(L) | Blending Power(KW) | Blending Speed(r/min) | Homogenizing Power(KW) | Homogenizing Rotation Speed(r/min) | Heating Method |
| GTM-100 | 100 | 1.5 | 0-63 | 4.0 | 0-3200 | Steam Heating Or Electric Heating |
| GTM-200 | 200 | 1.5 | 0-63 | 4.0 | 0-3200 | |
| GTM-500 | 500 | 3.0 | 0-63 | 7.5 | 0-3200 | |
| GTM-1000 | 1000 | 4.0 | 0-63 | 11 | 0-3200 | |
| GTM-2000 | 2000 | 7.5 | 0-63 | 11-15 | 0-3200 | |
| GTM-3000 | 3000 | 7.5-11 | 0-63 | 15-18.5 | 0-3200 | |
| GTM-5000 | 5000 | 11-15 | 0-63 | 18.5-22 | 0-3200 |
Hot Tags: mix tank with agit for sale, China, suppliers, manufacturers, factory, customized, low price, made in China, Vacuum Evaporator Concentrator, Falling Film Evaporator, Vacuum Reduced Pressure Concentrator, Mix Tank with Agit for Sale, Mixer Tank, Extraction Tank
1. Q : How can customer know the processes of order?
A : We will take photo or video during manufacturing every two weeks to make customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself.
2. Q : Do you supply installation equipment in oversea?
A : Yes, if need, we can also send our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 200USD/day.
3. Q : How to control quality?
A : All material we use has material certification. Before any piece of equipment leaves CHINZ. It goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.
4. Q : What is the shipment schedule?
A : We will send you photographs of your order being loaded into the shipping container at the factory. The shipping container will generally leave port 3-4 days after loading. We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container. Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time. Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company. You will be directly contacted by the shipping company’s local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time. If you need to delay the final delivery, there will be a “pull” fee of approximately $100, and a storage fee of approximately $150 per shipping container per day.
